Products - Coarse Aggregate
Products - 10MM - Coarse Aggregate
| IS SIEVE DESIGNATION | % PASSING IS 383-2016 |
|---|---|
| 16MM | 100 |
| 12.5MM | 100 |
| 10MM | 85-100 |
| 4.75MM | 0-20 |
| 2.36MM | 0-5 |
| PAN | - |
| APPLICATION | RCC/PCC/MASS |
Products - 12.5MM - Coarse Aggregate
| IS SIEVE DESIGNATION | % PASSING IS 383-2016 |
|---|---|
| 16MM | 100 |
| 12.5MM | 85-100 |
| 10MM | 0-45 |
| 4.75MM | 0-10 |
| PAN | - |
| - | - |
| APPLICATION | RCC/PCC/MASS |
Products - 20MM - Coarse Aggregate
| IS SIEVE DESIGNATION | % PASSING IS 383-2016 |
|---|---|
| 40MM | 100 |
| 20MM | 85-100 |
| 10MM | 0-20 |
| 4.75MM | 0-5 |
| PAN | - |
| APPLICATION | RCC/PCC/MASS |
Products - 16MM - Coarse Aggregate
| IS SIEVE DESIGNATION | % PASSING IS 383-2016 |
|---|---|
| 20MM | 100 |
| 16MM | 85-100 |
| 10MM | 0-30 |
| 4.75MM | 0-5 |
| PAN | - |
| APPLICATION | RCC/PCC/MASS |
Products - 40MM - Coarse Aggregate
| IS SIEVE DESIGNATION | % PASSING IS 383-2016 |
|---|---|
| 63MM | 100 |
| 40MM | 85-100 |
| 20MM | 0-20 |
| 10MM | 0-5 |
| PAN | 0 |
| APPLICATION | RCC/PCC/MASS |
Products - 63MM - Coarse Aggregate
| IS SIEVE DESIGNATION | % PASSING IS 383-2016 |
|---|---|
| 80MM | 100 |
| 63MM | 85-100 |
| 40MM | 0-30 |
| 20MM | 0-5 |
| 10MM | 0-5 |
| PAN | - |
| APPLICATION | PCC/MASS CONCRETE |
Products - 80MM-40MM- Coarse Aggregate
| IS SIEVE DESIGNATION | % PASSING IS 383-2016 |
|---|---|
| 80MM | 90-100 |
| 40MM | 0-10 |
| - | - |
| - | - |
| - | - |
| APPLICATION | MASS |
Products - 150MM-180MM - Coarse Aggregate
| IS SIEVE DESIGNATION | % PASSING IS 383-2016 |
|---|---|
| 80MM | 90-100 |
| 40MM | 0-10 |
| - | - |
| - | - |
| - | - |
| APPLICATION | MASS |

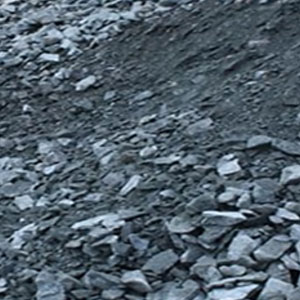

Products - GSB - Granular Sub-Base
MORT(H)Table 400-1 Grading for Granular Sub-base (GSB) Materials
| IS SIEVE DESIGNATION | % PASSING IS 383-2016 | |||
|---|---|---|---|---|
| I | II | III | IV | |
| 75MM | 100 | - | 100 | - |
| 53MM | 80-100 | 100 | 100 | - |
| 26.5MM | 55-90 | 70-100 | 55-75 | 50-80 |
| 9.50MM | 35-65 | 50-80 | - | - |
| 4.75MM | 25-55 | 40-65 | 10-30 | 15-35 |
| 2.36MM | 20-40 | 30-50 | - | - |
| 0.425MM | 0.10-15 | 0.10-15 | - | - |
| 0.075MM | <5 | <5 | <5 | <5 |

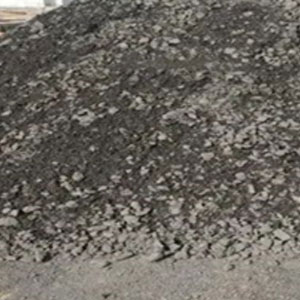

Products - WMM - Coarse Aggregate
MORT(H), Table 400-6&7 Grading for WMM Aggregates
| IS SIEVE DESIGNATION | Percent by weight passing the IS sieve | |||
|---|---|---|---|---|
| Coarse Aggregates | Screenings | |||
| 63MM to 45MM | 53MM to 22.4MM | 13.20mm | 11.2mm | |
| 75MM | 100 | - | - | - |
| 63MM | 90-100 | 100 | - | - |
| 53MM | 25-75 | 95-100 | - | - |
| 45MM | 0-15 | 65-90 | - | - |
| 22.4MM | 0-5 | 0-10 | - | - |
| 13.2MM | - | 0-50 | 100 | - |
| 11.2MM | - | - | 95-100 | 100 |
| 5.6MM | - | - | 15-35 | 90-100 |
| 180 Micro | - | - | 0-10 | 15-35 |
